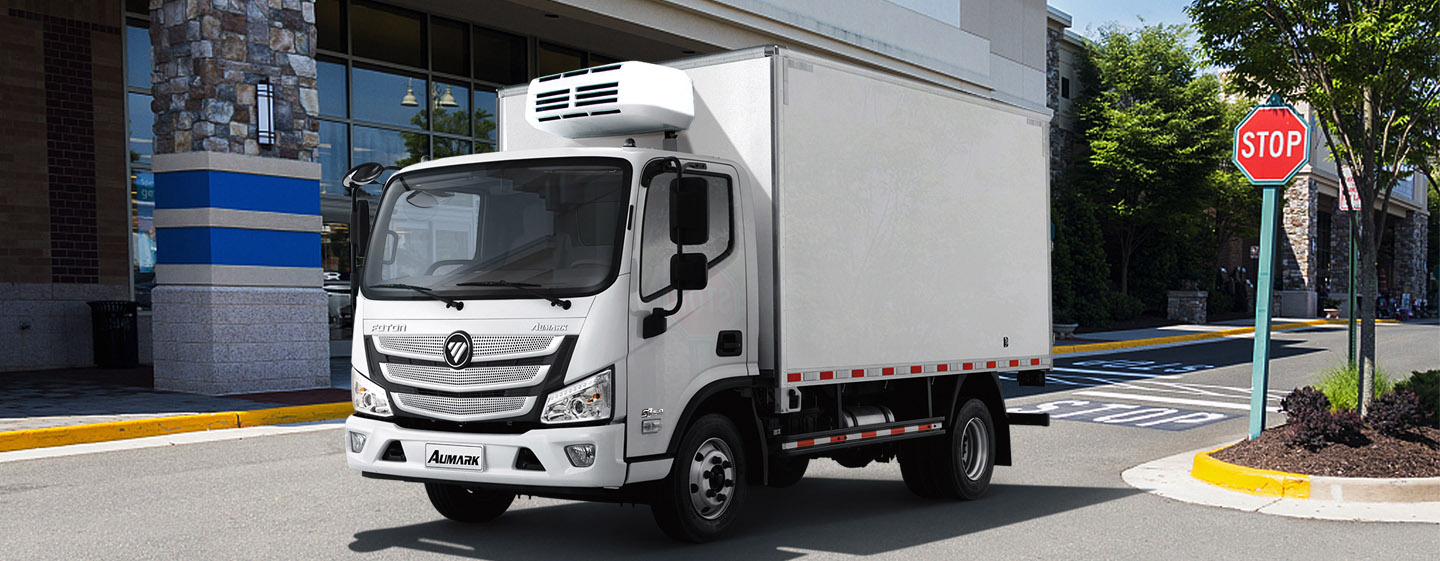

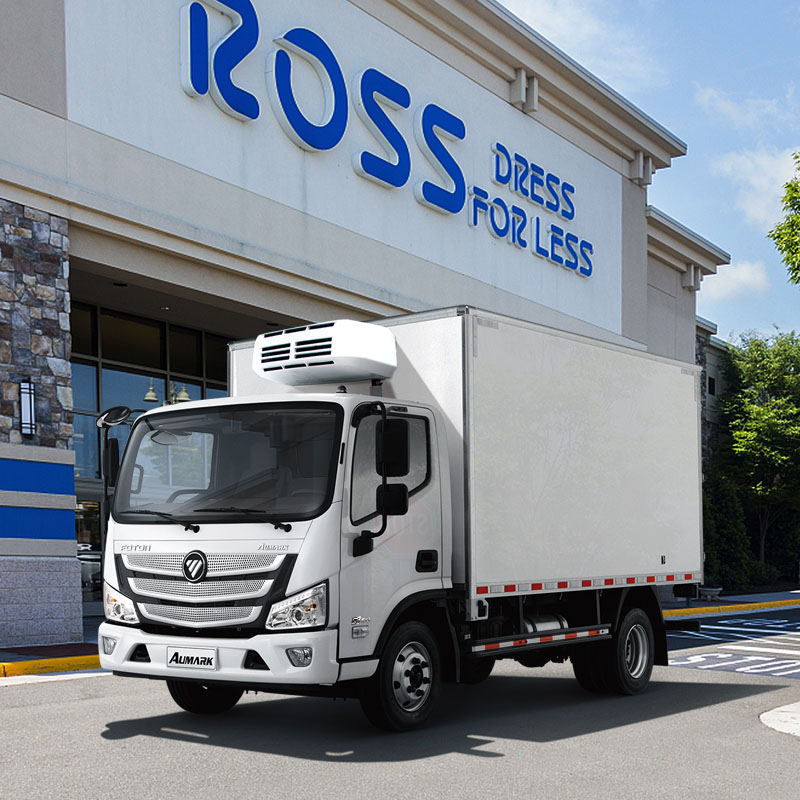

Foton Refrigerated Truck 5 Ton

Brand: Foton AUMARK S
Body: 1880/2060
Wheel Base: 3360-4200
Cabin Type: Single/Double/Half row

    Specification Overview Video
    Name Refrigerated truck
    Overall dimension 7345x2450x3500mm
    Van dimension 5100x2300x2300mm
    Curb weight 5300kg
    Max payload 4495kg
    Chassis brand Yuejin/Dongfeng/Foton/JAC(optional)
    Drive type Left/Right hand drive(optional)
    Drive wheel 4X2
    Tire 8.25R16LT 16PR,8.25R20 12PR/6pcs
    Front/rear tread 1705mm/1680mm
    Front/rear suspension 1130/2015mm
    Wheelbase 4200mm
    Leaf spring number 3/4+2
    Cylinder number 4
    Velocity ratio of rear axle 4.3
    Engine Sofim/Commins/Yuchai/Chaochai(optional)
    Emission Euro 3/4/5(optional)
    Displacement 3760ml
    Horse power 156hp
    Braking system With ABS system
    Max speed 105km/h
    Fuel type Diesel

    With shot blasting and 4 layers painting,color is optional.

    Super refrigeration and insulation

    Select international brand quality equipment efficient refrigerationsuper insulation, provide reliable and constant refrigeration space.

    Super stable and reliable

    New platform, super chassisreliable and stable.
    Through extreme environment and a total of 1.6 million km of rigorous teststhe company provides stable and reliable escort for the products beyond expectations.

    Corrosion resistance

    For the high wet and high corrosion working environ-ment of cold chain transportationcomprehensively strengthen the corrosion resistance ability of chassis, at the same time adopt the high anticorrosive bottom plate protection plate,bid farewell to rust.

    Special power

    According to the installation and power demand of refrigerated compressor/cooling machinethe engine and motor are developed to ensure strong power output and reliable operation of refrigeration equipment.
