Foton Auman Water Tank Truck

Type: Water Tank Truck
Tank Volume(m): 4/5/6
Volume:15001 – 30000L
Anticorrosion:EpoxyResin Paint

    Specification Overview Video
    tem No. Parameters
    Chassis Brand FOTON
    Overall Dimension 9900×2500×3400mm
    Gross Vehicle Weight 25000kg
    Curb Weight 10605 kg
    Wheel Base 4600+1350 mm
    Cabin Row and half, Left Hand Driving
    Engine Weichai, 270HP,310HP,340HP,380HP,430HP,460HP EURO 3 -6
    Overhang( Front/Rear) 1525/2460(mm)
    Fuel type Diesel
    Axle load 6000/12000(kg)
    Angle(Approach/departure) 16/22(°)
    Transmission/Gearbox 9 Forward & 1 Reverse Gear
    Brake System Pneumatic
    Steering Gear Power Assistant
    Tire 12.00R20, 10 Pieces with 1 spare tire
    Maximum speed 90(km/h)
    Water Tanker Tank Volume 25000 Liters / 25m3
    Tank Material 5mm Q235B Carbon Steel
    Sprinkling System: Suction height of Truck Pump >7m
    Full Tank Suction Time <15 minutes
    Sprinkling width of front/rear/side Sprinkler ≥14m
    Range of Water Cannon ≥35m
    Remarks Other Parts: Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs

    FOTON AUMAN Water Tank Truck 375HP With Front Spray Nozzles, Rear Water Sprinkler Cannon Two Sides Bowser for Dust Suppression 25Ton.

    FOTON AUMAN Water Tank Truck oblique configuration: medicine dish, medication pumps, anticorrosion, tank intersectorial inlet and outlet water joint, solenoid valves, pneumatic valves, etc.

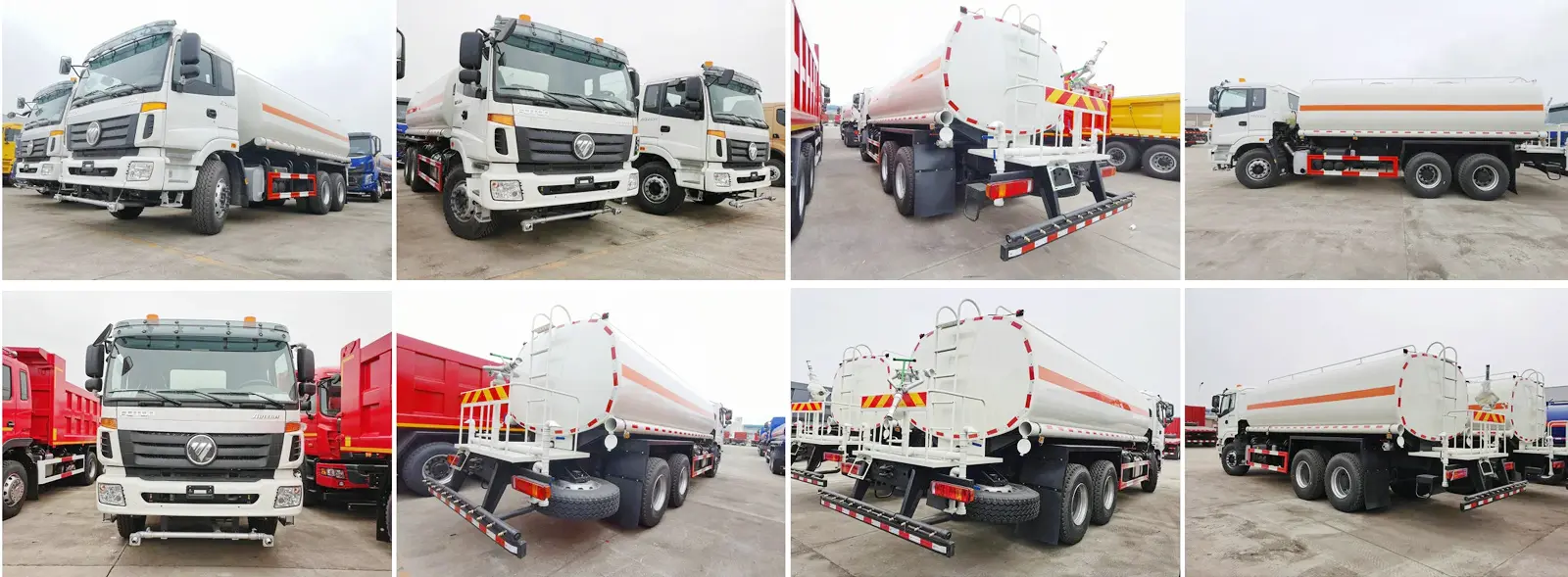

    FOTON AUMAN Water Tank Truck Exterior

    Foton Auman Water Tank Truck-1
