Model:BJ3259DLPKE-XD
Engine: WP10.336E55, 336HP,Euro V
Box dimension: 5800X2300X1100mm

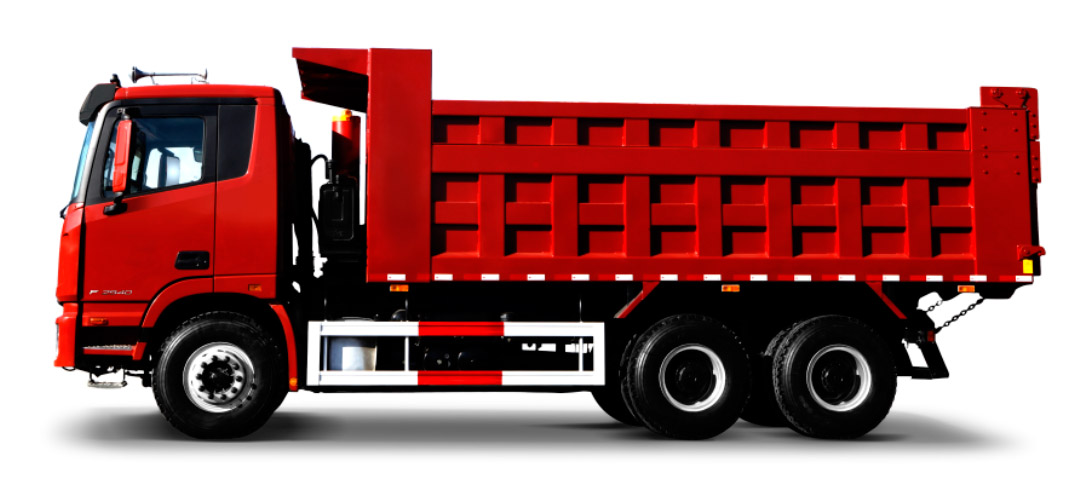

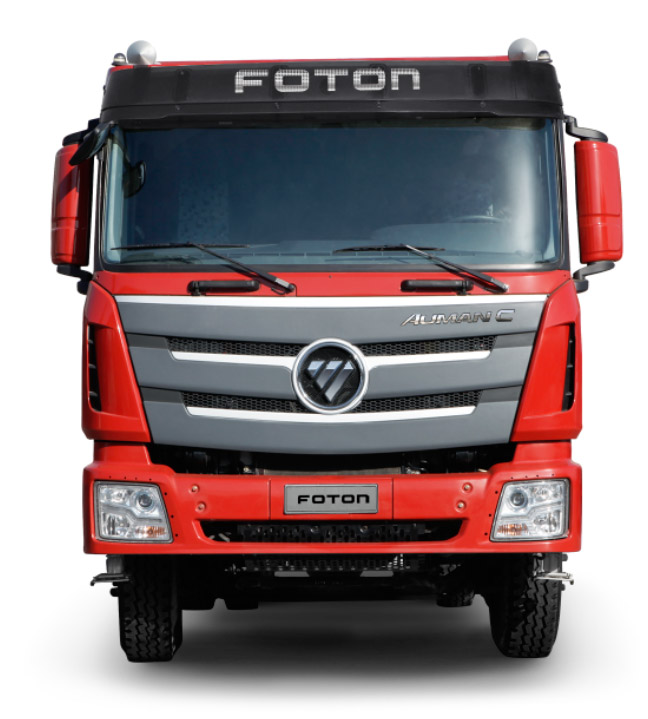

Product description: FOTON Auman GTL 6X4 dump truck
download
Whatsapp
| Model | BJ3259DLPKE-XD | |
| Drive type | 6X4 | |
| Wheel base(mm) | 4100+1350 | |
| Overall dimension(mm) | 8600X2495X3580 | |
| Curb weight(Kg) | 12280 | |
| Load capacity(Kg) | 30000 | |
| Cabin | Flat roof,one and half rows,luxury configuration,2 passengers allowable,with single bunker,A/C | |
| Engine | Model | WP10.336E55 |
| Max.output (kw/HP) | 247/336 | |
| Max.torque (N•m) | 1550@1200-1500RPM | |
| Displacement (ml) | 9726 | |
| Emission standard | Euro V | |
| Description | In-line, 6 cylinders,water cooled,4 strokes,turbo charged,inter-cooled,electric control,high pressure ,common rail diesel engine. | |
| Gear box | 12JSD200T,manual,12 forward ＆2 reverse gears | |
| Driving axle | Load capacity 18000Kg | |
| Front axle | Steering axle,load capacity 7000Kg | |
| Quantity of leaf spring | 10/12 | |
| Inner trimming | ||
| Standard configuration | Air suspension seat | |
| Seat heater | ||
| Lumbar support to the driver | ||
| Adjustable steering wheel | ||
| Electrical system | ||
| Standard configuration | CAN bus intellectual electronic control system | |
| New battery box | ||
| Start/stop device under the vehicle | ||
| Safety | ||
| Standard
configuration |
Three points safety belt | |
| Automatic clearance adjustment arm,tachometer | ||
| Service brake | Dual circuit compressed air brake | |
| Parking brake | Spring energy, compressed air operating on rear wheels | |
| ABS | Provided | |
| Comfortable accessories | ||
| Cab four points full floating suspension | Front and rear coil spring | |
| Standard configuration | Cab anti-rolling stabilizing device | |
| Hand accelerator | ||
| Electric window | Provided | |
| Chassis | ||
| Standard configuration | Big tool box | |
| Reinforced rim (with HQ mark) | ||
| Three in one lock (Ignition switch, door and fuel tank) | ||
| Type specification | 12.00R20 16PR | |
| Number of tyres | 10+1 | |
| Max.vehicle speed(km/h) | 80 | |
| Box dimension(mm) | 5800X2300X1100 | |
FOTON Auman GTL Dump Truck, upgrade and evolve. Based on customer needs and relying on forward -looking thinking and technological innovation, Oman GTL heavy cards, fuel -saving, reliable, safe, and comfortable upgraded and evolved.
The new generation of fuel -saving motivation
● Upgrade the high -efficiency turbocharger, the intake efficiency increases by 30%, and the combustion is more sufficient;
● The industry’s optimal electric silicon oil high -speed fan blades, high temperature work does not open, the combustion efficiency is higher;
● Module, lightweight design, lowering 200kg, lower fuel consumption;
● Application of advanced LKZ oil piston, decreased friction by 15%, and can reduce at most 50%of the oil consumption.
Super power chain one -chain oil -saving
● China Automobile Research Authority Evaluation, transmission efficiency 99.7%of the industry first in the industry;
● Based on Oman’s entire vehicle, 103 industrial conditions+253 scenes are customized and matched;
● The bottom -layer data of the entire vehicle & power chain is open and shared, all application software integrated coordinated control, 70%ultra -wide economic fuel consumption speed range.
5 million users around the world choose together
In the 15th year of Cummins in the world, there are 5 million units in the world;
In China, Fukang and Ouman have completed 23,000 hours, 16 million kilometers of integration, three high -level limits of work conditions.
The engine strength is comprehensively improved, and it is more reliable
● Optimization of cylinder structure mechanics structure, through 10 million and 1.5 times working pressure test design; 250,000 simulated cylinder impact test.
● All upgrade flash -plated technology steel piston, higher compression ratio, more resistant to high temperature, increased wear resistance by 30%.
● Upgrade the dual -cylinder air compressor, increase the amount of anesthesia by 78%, fast thermal speed and efficiency, extend the service life.
● Use Crutonite low nickel alloy exhaust valve to improve heat fatigue strength.
The only foreseeable service in the intelligent power management industry
● Intelligent emissions and thermal management control.
● Intelligent vehicle control system.
● Foreseeable service.

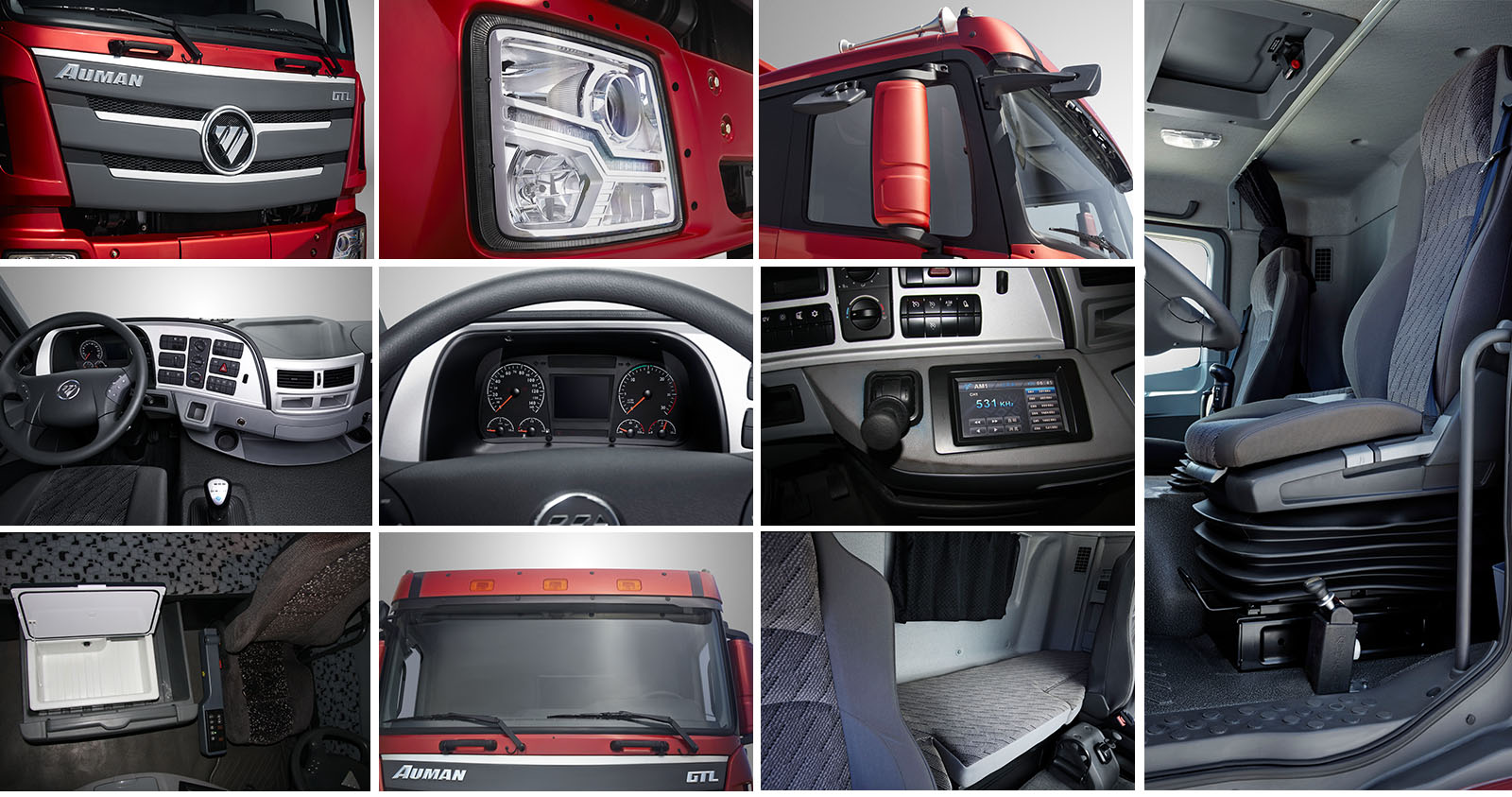

FOTON Auman GTL Dump Truck Interior
