-Foton Mini Truck

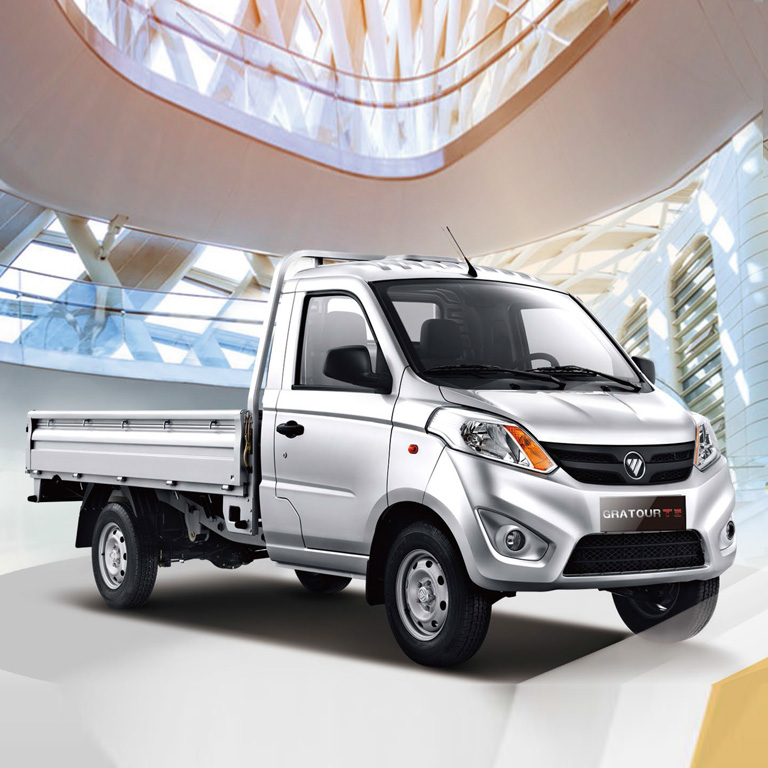

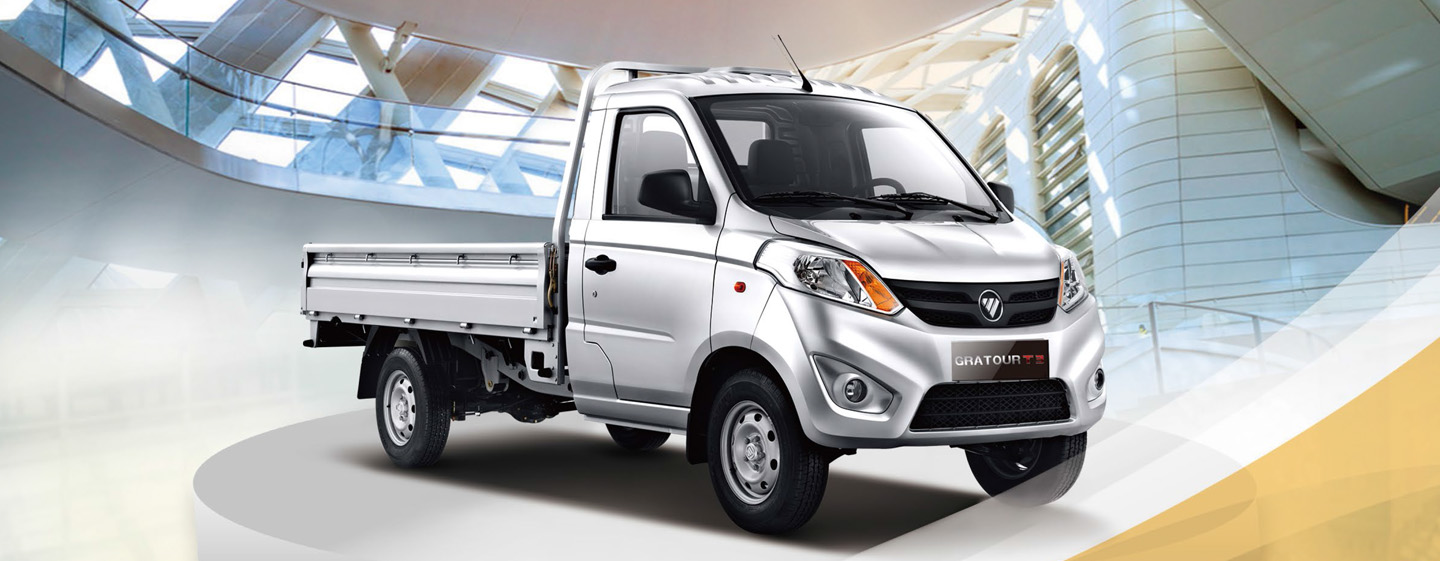

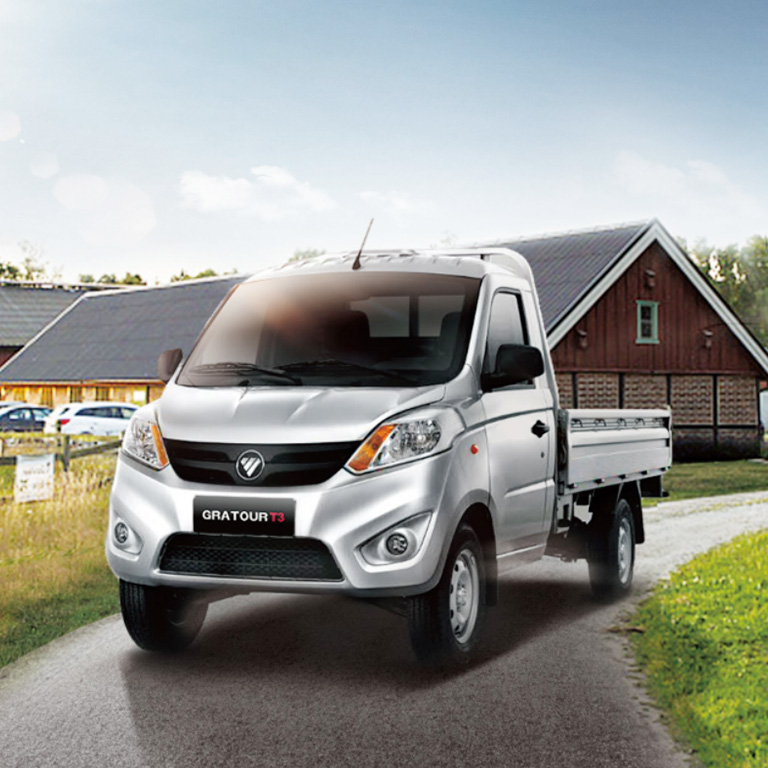

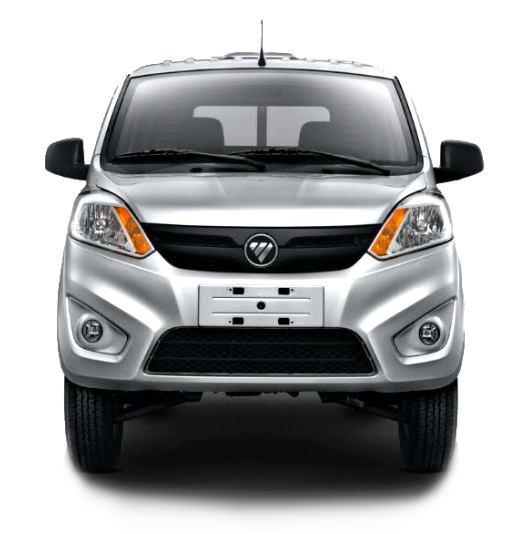

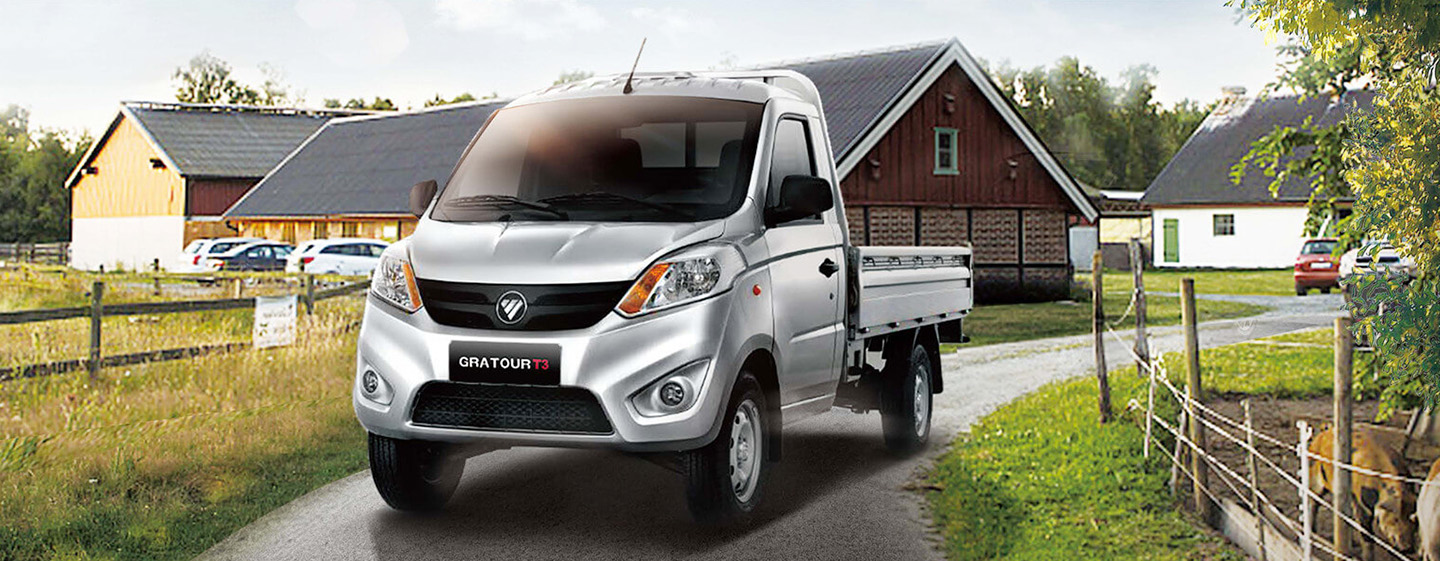

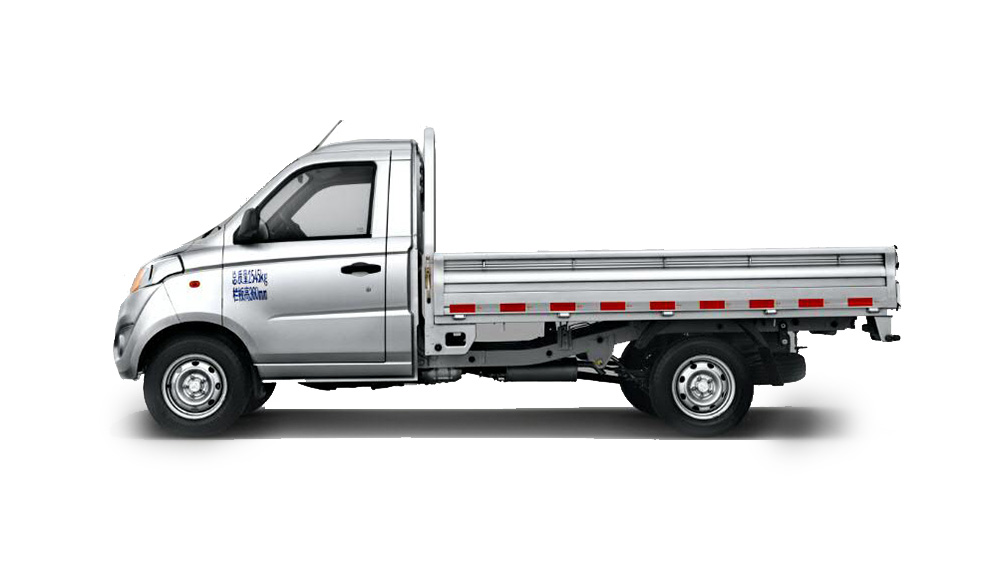

FOTON Gratour T3 Simple Cabin

Brand: Foton PT Gratour
Platform: Gratour T3
Wheel base(mm): 3070
Cabin: Single row/Double row
Load capacity(Kg): 2000
Left and right hand drive: Left hand drive

    Specification Overview Video
    Platform 1.0T
    Type Flat cargo
    Engine Model G03-1.2L
    Fuel Type Petrol
    Power (Kw/rpm) 63/6000
    Torque 112/4400-4400
    Displacement(ml) 1206
    Body Cabin Single cabin
    Seating arrangement 2
    Dimension(mm) Overall mm – 4386×1650×1975
    Cargo mm – 2300×1560×360
    Wheelbase mm -2650
    Weight & Loading GVW (Kg) – 2505
    Payload(including staff)/kg – 1425
    Curb Weight/kg – 1080
    Gearbox 5MT
    Brake Front Disk rear drum (vacuum booster).
    Suspension Front McPherson independent suspension. Rear leaf spring suspension
    Chassis   Power Steering
    Wheel Steel wheel (with cover & logo)
    Interior Interior trim Molded interio trims (only for front door shield panel). Door ill decoration
    Front Wheel cover decoration
    Carpet PVC. Manual anti-dazzling
    Rearview mirror
    Fast food board
    Store content box
    Roof Hemp fiber board + leather, molded hard roof (washable)
    Co-driver handhold
    Sun Visor Common sun visors (with paper clip at the driver’s side), 2 nos
    Seat Seat Fabric. Flat Fabric
      Driver seat – front/rear adjustable, backrest angle adjustable, head rest 4 levels. Front/rear unadjustable
    Exteriors Lamps and lanterns Headlamps
    Front lamps
    Rear lamps
    Front turn lamps
    Rear turn lamps
    Side turn lamps
    Brake lamp
    Back light
    Back reflecetor
    Headlamps adjusting device.. Manual
    Front fog lamp
    Rear fog lamp
      Window Manual
      Fender Front fender
      Rear view mirror Manual control. Black colour
      Front grill Black colour (with leather pattern)
      Door handle Black colour. (with leather pattern)
      Painting Metallic paint
      seat belt Driver and core driver seats. 3 points safety belt
      Outer door handle Black leather (with leather pattern)
      Steering wheel Steering column lock. PVC
      Door lock Common door lock. Warm braw
      Audio device Two speakers. Radio+AUX+USB
      Combination instrument Engine tachometer
    Cigarette lighter
      Portable ashtray
      Wiper Front wipers

    It is the Foton mini truck Gratour T3, with manual box and a minimum fuel consumption.

    Foton Gratour T3 is mini-truck with one cab, manual driving which helps low cost on fuel, additionally, you can install any type of box goods. It is very convenient to use in town or city placing safety and reducing accident and traffic. It stands out as known as, efficiency, low cost, safety, flexible and affordable.

    • It’s very useful mini-truck to help delivery in town/city more road safety and look neatly for a beautiful road city.
    • It’s very smart choice choosing Foton Gratour T3 deliver your goods/products efficiency.

    High Effecncy Power

    • Optimized intake system: Modular design of intake pipe,with engineering plastics substituting the conventional metal,effectively reducing the pipe wall resistance, enhancing theintake efficiency and increasing the engine power.
    • Volkswagen racing car-level DOHC technique, high speed and fast acceleration; 16-valve technique allowing instant power, high torque and excellent acceleration characteristics.

    Engines Independently Developed By Foton

    • Intelligent and optimize MPI technique allowing precise oil injection; variable intake PDA, reducing the fuel consumption. Compared to like products, PT engine combustion efficiency increasing by 8% and overall fuel consumption reducing by 6%
    • Excellent air filter performance prolonging the engine life; 55L tank allowing longer driving mileage; bearing type auxiliary water tank and double speed electronic fan enabling better air removal Effect.


    Freight vehicle expert

    • Professional freight vehicle, new design.
    • True short-head mini-pickup truck.
    • Strong chassis: Integratedly formed rectangular tube longeron, reinforced tube type rear axle, integrated primary and auxiliary 5-leaf spring rear suspension, and etc

    Load capacity

    • Large cargo compartment: For all the short-head mini-pickup freight vehicles, it has the maximum capacity of 2800*1560*36 mm, capacity of 1.5T ,individual design for cargo compartment and body, high strength,
    • high cargo-carrying capacity, standard cargo compartment configuration, and other practical designs which are more suitable for carrying cargos.
    • Ultra long endurance: 55L high-capacity fuel tank, never rusted, safer, maximum endurance mileage of more than 700KM.

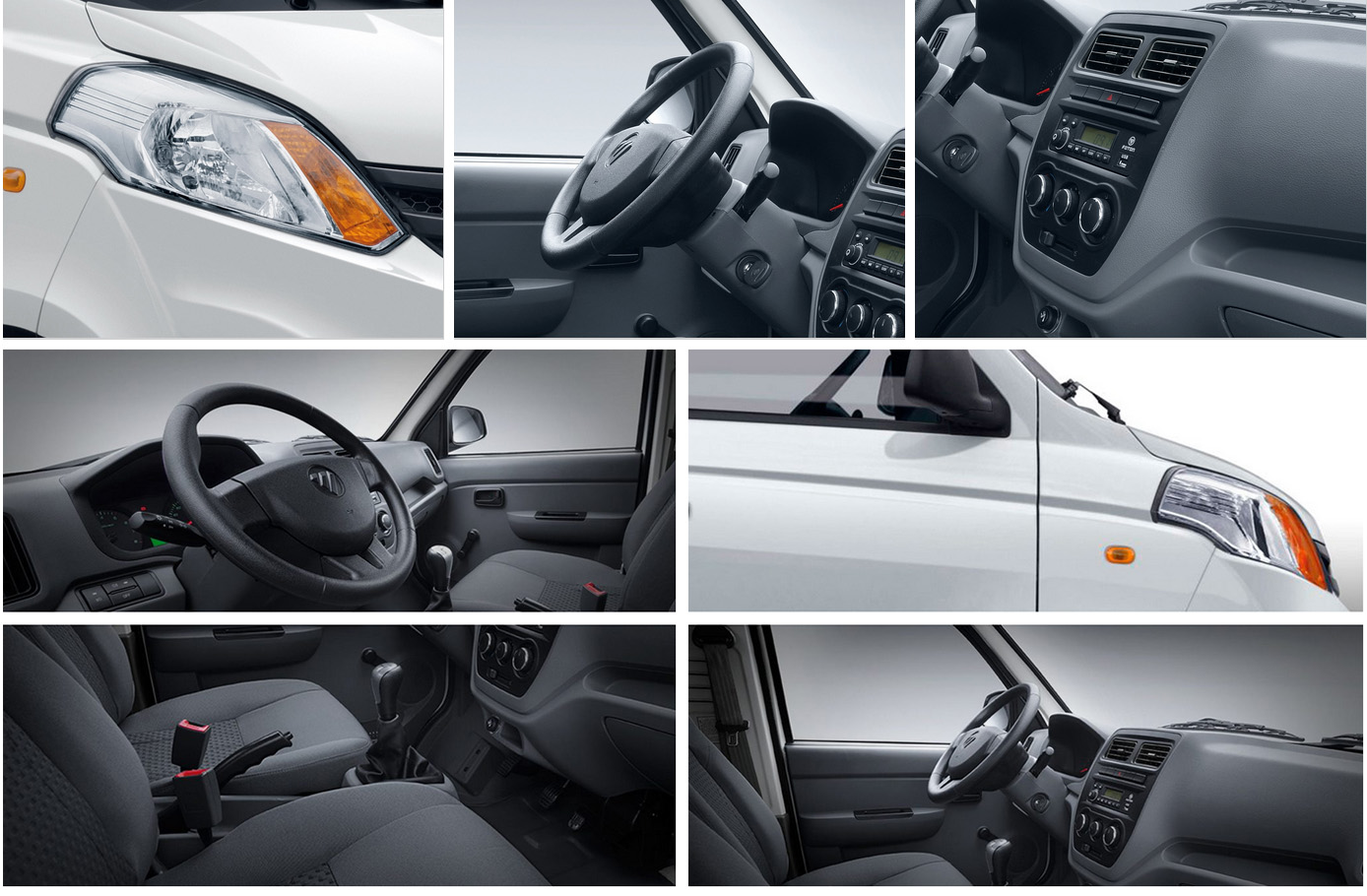

    FOTON Gratour T3 Interior
