-Heavy Truck

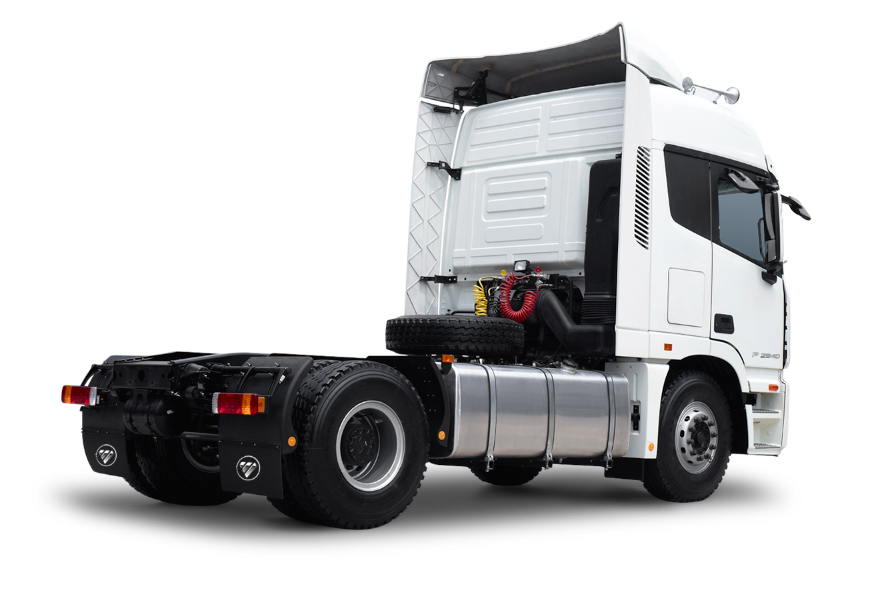

Foton AUMAN GTL 4X2 Tractor

Truck & Bus Segment:Heavy-duty Truck
Cab Type:Sleeper Cab
Body Type:Tractor Head
Body Application:N/A
Engine Model:ISGe3-430

    Specification Overview Video
    Summary Truck & Bus Segment Heavy-duty Truck
    Cab Type Sleeper Cab
    Body Type Tractor Head
    Body Application N/A
    Engine & Transmission Engine Model ISGe3-430
    Engine Size (L) 11.8L
    Engine Type 6-Cylinder turbo charged, 4 stroke in-line, water cooled
    Cylinder Count 6
    Valve Count 24
    Transmission Type Manual
    No. of Gears 12 Speed
    Drive Type 6×4
    Performance Max Power (hp) 430hp
    Max Torque (Nm) 2,200Nm
    Top Speed (km/h) N/A
    Fuel & Economy Fuel Type Diesel
    Fuel Capacity (L) 700L
    Emission Standard Euro 4
    Dimensions Overall Width (mm) N/A
    Wheelbase Extension N/A
    No. of Wheels 10
    Front tire size 315/80R22.5
    Rear tire size 315/80R22.5
    Suspension & Brakes Front Suspension Laminated leaf spring with double shock absorbers
    Rear Suspension Laminated leaf spring with double shock absorbers
    Front Brakes Air Brakes
    Rear Brakes Air Brakes
    Parking Brakes YES

    Foton Auman GTL Tractor Head 4×2 6 Wheeler Specifications

    Foton AUMAN GTL Tractor Head Truck is one of the most popular and best-selling heavy-duty truck series in foton.

    It adopts Daimler’s quality management system to create a heavy-duty truck with high quality of European standard. It has passed TUV and obtained the “European standard” certification. It is the 2012 Chinese heavy-duty truck model of the year. GTL trucks are recommended for long distance logistics and transportation. The appearance is simple and modern, with advanced safety system, fuel saving and comfort.

    Industry 4.0 intelligent manufacturing

    By absorbing the technological advantages of Germany, the United States and China, foton automobile takes business intelligence, intelligent management, intelligent vehicles, intelligent factory and intelligent manufacturing as the core to build “industry 4.0 system”. Based on the vehicle Internet, big data and cloud platform, gradually establish a customer-centered ecosystem, promote intelligent business management through the application of big data, and realize mass customization of customers through intelligent products, intelligent factories and intelligent manufacturing.

    Foton digital factory is the first global heavy truck model factory in China to achieve the world standard manufacturing level, with advanced equipment, standard process, precision technology, strict manufacturing management and control. Its annual capacity is up to 200,000; Its main line intelligent degree has reached 60%, its logistics is the most reasonable, the highest efficiency, and its digital management is very complete, producing a heavy truck in 4 minutes. Each heavy truck goes through 36 quality checks.

    The foton auman gtl truck tractor electronically controlled high-pressure fuel system is used to achieve high-pressure atomisation of diesel fuel in the fuel tank and precise injection; ensuring full combustion of fuel and economical fuel consumption.

    ISG series engine
    Cummins global latest technology;The latest cummins engine;It is the first engine to synchronize the Chinese market with the world

    Modular design

    Modular design,Change a large number of vulnerable parts into basic parts, greatly reduce the number of parts and failure probability, such as the integrated design of oil cooling system module;Lightweight structural design,High strength materials and advanced processing technology application, ensure weight reduction, quality improvement.

    Ultra high pressure injection technology

    Better combustion, better atomization, high combustion efficiency.The injection pressure is more than 2000pa, the fuel atomization is better, reducing emissions.
    It can realize the precise control of injection pressure and injection amount, realize multi-stage fuel injection and lower noise. Full combustion can minimize the damage to throttle, inlet, valve and combustion chamber, and extend the service life of the engine.Low rotation speed and high torque, strong climbing ability;It can be started in the environment of -35℃ without heat assistance within 7 seconds;

    Smart, fuel-efficient driving

    Intelligent detection of the load of the vehicle, according to different weights to choose a reasonable gear shift speed, and limit the speed of gear change, make the vehicle run in the economic speed range, to achieve economic driving.Is it like having a professional coach to teach you how to drive your car accurately and efficiently.

    Weichai WP10/12 engine

    The terrain suitable for use is more diverse, starting faster and climbing more powerful, more economical and fuel efficient, reducing the cost.More power systems are available for users to choose from,Currently equipped to meet euro 3 emissions.

    Aerodynamic optimization

    The truck body is aerodynamically designed to minimize air resistance during travel and has passed wind tunnel tests. At the same time, the air guide plate can be adjusted to further reduce wind resistance.Large, high flow, high position lateral intake system with filtration technology and low resistance. Compared with other similar vehicles, it can save about 3%-5% fuel.
    Foton Auman GTL 4X2 Automatic Transmission Tractor
    From the perspective of power parameters, 470 horsepower is very suitable for express standard transportation. It is just right for 4×2 tractors, and it is also conducive to fuel economy. The reliability and durability of Fukang engines are also well-known in the industry. More tolerant to various working conditions.

    The gearbox part is matched with a ZF Chuansheng 12-speed AMT gearbox. The shifting mechanism adopts an integrated design, which has a higher integration rate and a lower failure rate. The Fukang and ZF AMT power chain must be familiar to everyone. It is very mature in the market. After integrated matching, it has been well compatible in performance, fuel consumption, ride comfort and other aspects. For the high-efficiency and high-attendance transportation scene of express e-commerce, this set of power is an ideal choice.

    The chassis of the car looks particularly short, with 295/60R22.5 tires. We also compared another Auman GTL chassis with 12R22.5 tires next to it, and the entire chassis height will be significantly different. In addition, this car also has an airbag rear axle, which can adjust the height of the airbag through an electronic control system, which can further lower the chassis. The chassis height is relatively lower, the height of the cargo bed can be made higher, and the volume is relatively more advantageous.
